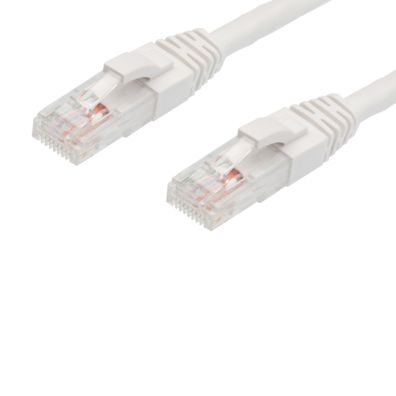

30m RJ45 CAT6 Ethernet Network Cable | White

30m RJ45 Cat 6 Ethernet Network Cables White

The 4Cabling Cat 6 Patch Ethernet Cables allow for better signal to noise ratio with minimal loss - which translates to faster and more reliable networks for today's applications, Cat 6 cable commonly used where performance, reliability, and maximum speed are needed.

Category 6 cable, commonly referred to as Cat-6, is a cable standard for Gigabit Ethernet and other network protocols that are backward compatible with the Category 5/5e and Category 3 cable standards.&

Compared with Cat-5 and Cat-5e, Cat-6 ethernet cable features more stringent specifications for crosstalk and system noise. The cable standard provides performance of up to 250 MHz and is suitable for 10BASE-T, 100BASE-TX (Fast Ethernet), 1000BASE-T / 1000BASE-TX (Gigabit Ethernet) and 10GBASE-T (10-Gigabit Ethernet).

CABLE SPECIFICATIONS

• Cable Type: Cat 6
• Connectors: RJ45-RJ45
• Length: 30m
• Colour: White
• Jacket Material: PVC
• Diameter: 6.2mm

FEATURES

• RJ-45 connectors
• CAT6 stranded cable best used for patch leads
• Impedance Matched - Wire and connectors are carefully matched to virtually eliminate echoing and cancellation, providing high speed, error free transmission
• Gold Plated Contacts - Gold plating eliminates corrosion and provides maximum conductivity to ensure data integrity
• Unique PVC Jacket - Exclusive polymer technology provides unsurpassed durability and flexibility
• Snag Free Boots - Prevent cable kinks and bent pins when removing them from patch panels
• Strain Relief - Increases strength while sustaining maximum flexibility even under extreme conditions

CERTIFICATIONS

• UL listed
• EIA/TIA and RCM approved
• ISO/IEC11801:2011(Ed. 2.2)
• ANSI/TIA/EIA-568-C.2
• EN 50173-1:2011
• EN 50173-2:2007 including amendment A1:2010
• IEC61935-2:2010(Ed.3.0) (transmission requirements)

How to distinguish a Cat 6 plug from a Cat-5 or Cat-5E plug:

To distinguish a Cat-6 plug from a Cat-5 or a Cat-5E plug, just simply look at the way the cable's wires have been terminated at the end of the plug:

• A Cat-5 or a Cat-5E plug will ALWAYS have all eight wires in a single row
• The majority of Cat-6 plugs will have wires in two rows with four wires per row
• Some Cat-6 plugs will have wires in two rows with 6 wires in the top row and 2 wires in the bottom row

WARRANTY

3-years limited warranty.
