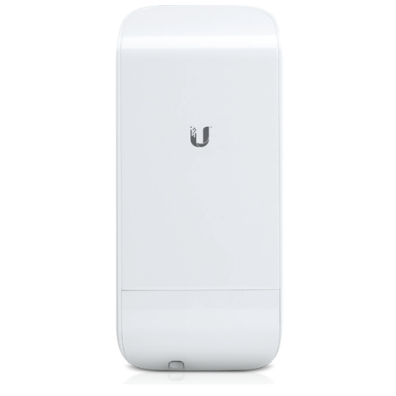

Ubiquiti | AirMAX CPE | LocoM2 | 2.4GHz NanoStation Loco MIMO

Step into the future of outdoor broadband connectivity with the Ubiquiti NanoStation Loco MIMO, a pioneer in low-cost, high-efficiency CPE design. Building on the success of the original NanoStation LOCOM2, Ubiquiti takes it to the next level with the NanoStation M and NanoStation Loco M, featuring sleek and elegant redesigned form-factors. These devices set the standard for cost-effective outdoor broadband solutions.

With real outdoor throughput of 150+ Mbps and an impressive range of up to 5km, the NanoStation Loco MIMO delivers unmatched performance. Utilizing 2x2 MIMO technology, it establishes links faster and covers greater distances than ever before. The antenna array boasts 8dBi at 2.4GHz, providing optimized cross-polarity isolation in a compact form-factor. Additionally, the NanoStation M features remote hardware reset circuitry, allowing for convenient remote resets from the power supply location.

Unlock the potential of seamless connectivity with key features like connecting remote locations on a single network, sharing internet connections between buildings, and achieving up to 200mW output power with 2x2 MIMO operation at 100Mbps. The NanoStation Loco MIMO comes complete with integrated AirOS web software for easy control over power settings, bridge/AP mode, and more. Each unit includes a POE injector and 240V AC adaptor, making it a comprehensive solution for wireless bridging, requiring two units for a complete bridge setup. Elevate your network with Ubiquiti's NanoStation Loco MIMO for reliable, high-performance outdoor connectivity.

• Connect two remote locations on the one network
• Share Internet connection between buildings, remote sites, etc.
• Up to 200mW output power, 2x2 MIMO operation, 100Mbps
• Integrated AirOS web software for controlling power, bridge/AP mode, etc.
• Includes POE injector and 240V AC adaptor
• Two units required for wireless bridge

• Dimensions: 161 x 31 x 80mm
• Weight: 180g
• Power Supply (PoE): 24V, 0.5A
• Max. Power Consumption: 5.5W
• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Operating Frequency: 2412-2462MHz
• Gain: 8.5dBi
• Networking Interface: (1) 10/100 Ethernet Port
• Processor Specs: Atheros MIPS 24Kc, 400 MHz
• Memory: 32MB SDRAM, 8MB Flash
• Frequency: 2.4GHz
• Cross-pol Isolation: 20dB Minimum
• Max. VSWR: 1.4:1
• Beamwidth: 60° (H-pol) / 60° (V-pol) / 60° (Elevation)
• Polarization: Dual Linear
• Enclosure: Outdoor UV Stabilized Plastic
• Mounting: Pole-Mount (Kit Included)
• Operating Temperature: -30 to 75°C
• Operating Humidity: 5 to 95% Noncondensing
• Wireless Approvals: FCC Part 15.247, IC RS210, CE
• RoHS Compliance: Yes
• Shock & Vibration: ETSI300-019-1.4

1-year limited warranty
