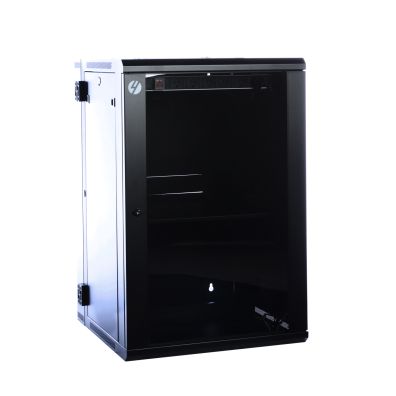

4Cabling 18RU 600mm Wide x 600mm Deep Hinged Wall Mount Server Rack
SKU: 002.013.1860

4Cabling 18RU 600mm Wide x 600mm Deep Hinged Wall Mount Server Rack

$774.32 $673.32
$774.32 $673.32
In stock
  • Reversible Tempered Glass Front Door
  • 2-way Ceiling Mount Fan Kit and 6-way Rack Mount Power Rail Included
  • Constructed from High-Quality Cold-Rolled Steel
  • Designed/built to ANSI-310-D, IEC 297-2, DIN 41491/41494 Standards
Curbside Pickup

In stock

SKU
002.013.1860

4Cabling 18RU W600mm x D600mm Hinged Wall Mount Server Rack



Our 4Cabling 18RU 600mm Wide x 600mm Deep Hinged Wall Mount Server Racks have been designed as a cost-effective data management solution for installers and customers who require quick installation and great value for money. Our server racks are designed to be easily wall-mounted and are made of solid cold-rolled steel with welded construction for added strength.



The server rack is supplied fully assembled with a solid top and base, plus removable side panels, and a front glass door all lockable for added security. This network cabinet provides flexibility for customers who know exactly what they require of their server rack. Possible usage applications include housing small servers, DVR, security equipment, routers, patch panels, switches and rack-mount equipment, Telephone Systems, PABX equipment, and Network and Communications Equipment.



Cable access is achievable via the roof or base by removable gland plates. 4Cabling server racks are built around universal 19" standards, to deliver compatibility with both leading vendor equipment manufacturers as well as OEM brands. A wide range of 19" server rack accessories are available from 4Cabling to complement this cabinet as well as the rest of our range of quality server racks.

FEATURES

  • Supplied fully assembled
  • Constructed from High-quality Cold-rolled Steel
  • Rails 2mm, Frame and Doors 1.2mm, Panels, Shelves and Cable Management 1.2mm
  • Lockable Tempered Glass Front Door With Cam-Lock
  • Hinged Swing Frame Enclosure with Reversible Drop Hinge
  • Lockable Solid Steel Side & Back Doors
  • Reversible Front Door
  • 2-way Ceiling Mount Fan Kit
  • 6-way Rack Mount Power Rail
  • 1 x Fixed Shelf
  • Removable Side Panels
  • Adjustable 19" L Rails Front & Rear of Cabinets with RU Markings
  • Cable Entry Glands on the Top and Bottom
  • 10 Sets of Cage Nuts
  • Loading Capacity 65kg
  • Earthed Doors and Side Panels
  • Designed/built to ANSI-310-D, IEC 297-2, DIN 41491/41494 Standards

WARRANTY

3-years limited warranty

Specifications

More Information
SKU 002.013.1860
Brand 4Cabling
Manufacturer Part# 002.013.1860
GTIN 9358148019363
Rack RU Size 18RU
Cabinet Type Wall Mount
Colour Black
Material Cold-rolled Steel
Surface Finish Powder Coated, Black Sand Grain
External Height 910mm
External Width 600mm
External Depth 600mm
Internal Height 800mm
Internal Width 470mm
Internal Depth (Front Rail to Back Door) 500mm
Load Capacity 65kg
Rails L Shaped Rails - 2 x Front, 2 x Rear
Rail to Rail Depth 330mm
Shelf Quantity 1
Shelf Depth 320mm
Shelf Width 470mm
Shelf Load Cap 50kg
Gland Plates Top 2 x (Hinge Rear 350mm(w) x 60mm(d) + Cabinet Rear 250mm(w) x 70mm(d)
Gland Plates Rear 3 x Centre 350mm(w) x 60mm(d)
Gland Plates Bottom 1 x 350mm(w) x 60mm(d)
Supplied Fully Assembled Yes
Lockable Yes
Reversible Hinges Yes
Lockable Castors N/A
Tempered Glass Yes
Fans 2 x Roof Mount
PDU 1 x 6 Way Rackmount
Cage Nuts & Inclusions 10 x Cage Nuts plus 1 x Allen Key
Included Items 4 x key-sets (4x2)
Vertical Cable Management No
Carton Height 940mm
Carton Width 640mm
Carton Depth 650mm
Carton Weight 43kg
Warranty 3 Years
