4Cabling 45RU 800mm Wide x 1070mm Deep Premium Server Rack With Bi-Fold Mesh Door
SKU: 002.001.4590

4Cabling 45RU 800mm Wide x 1070mm Deep Premium Server Rack With Bi-Fold Mesh Door

Special Price $3,649.66 $3,173.62 Regular Price $4,055.18 $3,526.24
Special Price $3,649.66 $3,173.62 Regular Price $4,055.18 $3,526.24
In stock

BI-FOLD MESH DOOR

Curbside Pickup
Sale

In stock

SKU
002.001.4590

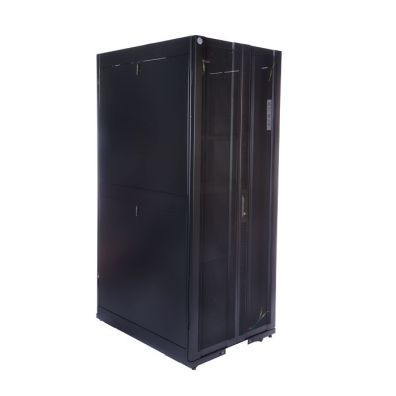

4Cabling 45RU 800mm Wide x 1070mm Deep Premium Server Rack With Bi-Fold Mesh Door

4Cabling's Premium Server Racks have been designed as a high-quality cable management solution, ideal for data centres and equipment rooms. These server cabinets are designed to be easily installed and are reinforced using heavy-duty mounting rails and castor wheels.

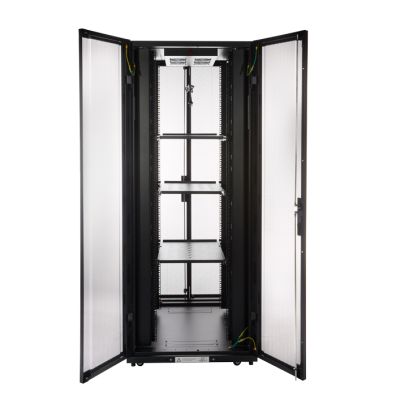

This premium server rack comes supplied fully assembled complete with front & rear bi-fold mesh doors and split side panels. The split rear doors greatly improve access to the server rack as only limited clearance is needed to open the door - making it perfect for data centres or space-limited environments. The racks 2 point locking systems ensure the security of the cabinet and the stability of the door.



Cable access is achievable via the roof or base by removable gland plates. 4Cabling premium server cabinets are built around universal 19" standards, to deliver compatibility with both leading vendor equipment manufacturers as well as OEM brands. A wide range of 19" accessories are available from 4Cabling to complement the server rack.

FEATURES

  • Supplied fully assembled
  • Constructed from high-quality SPCC cold-rolled steel
  • Steel thickness; rails and frame 2mm, front door 1.5mm, Rear door, shelves, and cable management 1.2mm
  • 4-way ceiling mount fan kit
  • 2 x PDU mounting rails in the rear of the cabinet
  • Vertical cable management rails front and rear of the cabinet
  • 10-way vertical mounted power rail
  • 40 sets of cage nuts
  • 2 x fixed shelves and 1 sliding shelf installed
  • Lockable Bi-fold front and rear mesh doors
  • 2 x Lockable side panels on each side
  • Adjustable 19" L rails front and rear of server rack
  • Leveling feet and lockable castor wheels
  • Cable entry glands on the top and bottom
  • Earthed doors and side panels
  • Static loading capacity 1500kg
  • Designed/built to ANSI EIA/ECA-310-E, IEC 297-2, DIN 41491/41494 standards

WARRANTY

3-years limited warranty

Specifications

More Information
SKU 002.001.4590
Brand 4Cabling
Manufacturer Part# 002.001.4590
GTIN 9358148019752
Rack RU Size 45RU
Cabinet Type Full Height
Colour Black
Material Cold-rolled Steel
Surface Finish Powder Coated, Black Sand Grain
External Height 2130mm
External Width 800mm
External Depth 1070mm
Internal Height 1960mm
Internal Width 470mm
Internal Depth (Front Rail to Back Door) 880mm
Load Capacity 1500kg
Rail to Rail Depth 590mm
Shelf Quantity 3
Fixed Shelf Depth 550mm
Fixed Shelf Width 440mm
Sliding Shelf Depth 500mm
Sliding Shelf Width 420mm
Shelf Depth 550mm
Reversible Hinges No
Lockable Castors Yes
PDU Mounting Rails 2 at rear
Tempered Glass No
PDU 1 x 10 Way Vertical
Vertical Cable Management 4 (2 front and 2 rear)
Carton Height 2140mm
Carton Width 830mm
Carton Depth 1100mm
Carton Weight 165kg
Warranty 3 Years
