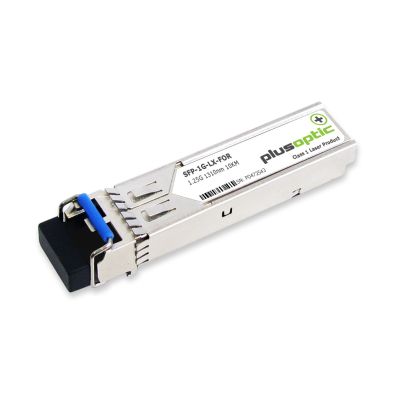

Fortinet compatible (FG-TRAN-LX) 1.25G, SFP, 1310nm, 10KM Transceiver, LC Connector for SMF with DOM
SKU: SFP-1G-LX-FOR

Fortinet compatible (FG-TRAN-LX) 1.25G, SFP, 1310nm, 10KM Transceiver, LC Connector for SMF with DOM

$72.45 $63.00
$72.45 $63.00
In stock
  • 1.25Gb/s data rate with 10KM range on SMF
  • Fortinet compatible, featuring FP laser and PIN photo-detector
  • Supports Digital Diagnostic Monitoring for enhanced reliability
  • Compliant with MSA and SFF-8472 standards for broad compatibility
Curbside Pickup

Online Delivery Only

In stock (Nation Wide Delivery)

SKU
SFP-1G-LX-FOR

These Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the FP laser and the PIN photo-detector. The module data link up to 10KM in 9/125um single mode fibre.



The optical output can be disabled by a TTL logic high-level input of Tx Disable, and the system also can disable the module via I2C. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner. The system can also get the LOS (or Link)/Disable/Fault information via I2C register access.

FEATURES

  • Up to 1.25Gb/s data links
  • FP laser transmitter and PIN photo-detector
  • Up to 10km on 9/125µm SMF
  • Hot-pluggable SFP footprint
  • Duplex LC/UPC type pluggable optical interface
  • Low power dissipation
  • Metal enclosure, for lower EMI
  • RoHS compliant and lead-free
  • Support Digital Diagnostic Monitoring interface
  • Single +3.3V power supply
  • Compliant with SFF-8472
  • Case operating temperature
    • Commercial: 0°C to +70°C
    • Industrial: -40°C to +85°C

APPLICATIONS

  • Switch to Switch Interface
  • Gigabit Ethernet
  • Switched Backplane Applications
  • Router/Server Interface
  • Other Optical Links

WARRANTY

3-years limited warranty


TAA-approved SFPs available upon request, Contact us for more details.

Specifications

More Information
SKU SFP-1G-LX-FOR
Hide Price No
Brand Plusoptic
Manufacturer Part# SFP-1G-LX-FOR
GTIN 9350888077351
Compatible Brand Fortinet
Device Type SFP
Transmission Mode SM
Max Distance 10km
Wave Length 1310nm
Max Data Rate 1G
Terminations LC
Warranty 3 Years
