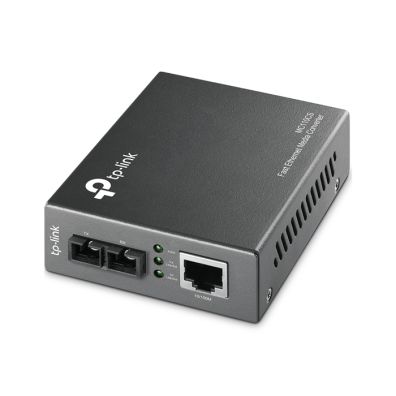

TP-Link | MC110CS | 10/100Mbps Single-Mode Media Converter

This TP-LINK media converter is designed to convert 100BASE-FX fibre to 100Base-TX copper media or the opposite way. The TP-LINK is designed to be used with a single-mode fibre cable utilising the SC-Type connector.

• Supports longwave (LX) laser specification at a full wire speed-forwarding rate
• It works at 1310nm on both transmitting and receiving data
• Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port and front panel status LEDs
• Able to be used as a stand-alone device (no Chassis required)
• Able to be used with TP-LINK's 19" system chassis
• Will transmit at extended fibre optic distances utilising single-mode fibre up to 20 kilometres
• Auto-negotiation of 10/100Mbps and auto MDI/MDIX for TX port
• Provide switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port
• Link Fault Passthrough and Far End Fault minimise the loss caused by link failure timely
• Extend fibre distance up to 20km
• Easy-to-view LED indicators provide status to monitor network activity easily
• External power supply

• Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Half/Full-Duplex transfer mode for FX port
• Full Duplex Flow Control (IEEE 802.3x)
• Half Duplex Flow Control (Back pressure)
• Extends fibre distance up to 20km
• Link Fault Passthrough and Far End Fault minimise the loss caused by link failure timely
• Ports: 1 x 100M SC port, 1 x 100M RJ45 port (Auto MDI/MDIX)
• Wave Length: 1310nm
• Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m)
• Network Media 100BASE-T: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m)
• Network Media 100BASE-FX: Single-mode Fibre
• LED Indicators: PWR, FDX/Col, Link/Act, SPD
• Dimensions (W*D*H): 94.5 x 73.0 x 27.0 mm
• Power Supply: External power supply, Power Output : 9V
• Safety & Emission: FCC, CE, RoH
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

3-years limited warranty
