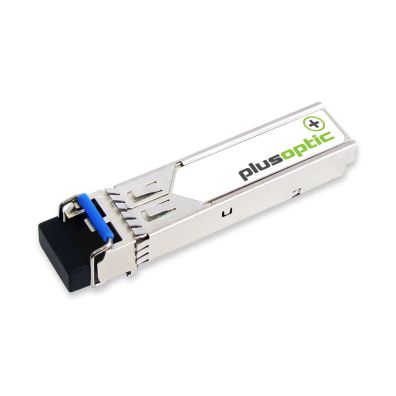

Plusoptic 1.25G, SFP, 1310nm, 10KM Transceiver, LC Connector for SMF with DOM | Industrial temperature rated
SKU: SFP-1G-LX-PLUI

Plusoptic 1.25G, SFP, 1310nm, 10KM Transceiver, LC Connector for SMF with DOM | Industrial temperature rated

$85.10 $74.00
$85.10 $74.00
In stock
  • 1.25G data links with a reach of up to 10KM for reliable connectivity
  • 1310nm FP laser for optimal performance in single-mode fibre
  • Hot-pluggable SFP design ensures easy integration and maintenance
  • Compatible with various networking equipment for versatile use
Register Interest
This product is temporarily out of stock. Register your interest and we will contact you to discuss.
Curbside Pickup

Online Delivery

Out of stock
SKU
SFP-1G-LX-PLUI

These Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the FP laser and the PIN photo-detector. The module data link up to 10KM in 9/125um single mode fibre.



The optical output can be disabled by a TTL logic high-level input of Tx Disable, and the system also can disable the module via I2C. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner. The system can also get the LOS (or Link)/Disable/Fault information via I2C register access.

FEATURES

  • Up to 1.25Gb/s data links
  • FP laser transmitter and PIN photo-detector
  • Up to 10km on 9/125µm SMF
  • Hot-pluggable SFP footprint
  • Duplex LC/UPC type pluggable optical interface
  • Low power dissipation
  • Metal enclosure, for lower EMI
  • RoHS compliant and lead-free
  • Support Digital Diagnostic Monitoring interface
  • Single +3.3V power supply
  • Compliant with SFF-8472
  • Case operating temperature
    • Commercial: 0°C to +70°C
    • Industrial: -40°C to +85°C

APPLICATIONS

  • Switch to Switch Interface
  • Gigabit Ethernet
  • Switched Backplane Applications
  • Router/Server Interface
  • Other Optical Links

WARRANTY

3-years limited warranty

Specifications

More Information
SKU SFP-1G-LX-PLUI
Hide Price No
Brand Plusoptic
Manufacturer Part# SFP-1G-LX-PLUI
GTIN 9350888018811
Compatible Brand Plusoptic
Device Type SFP
Transmission Mode SM
Max Distance 10km
Wave Length 1310nm
Max Data Rate 1G
Terminations LC
Warranty 3 Years
