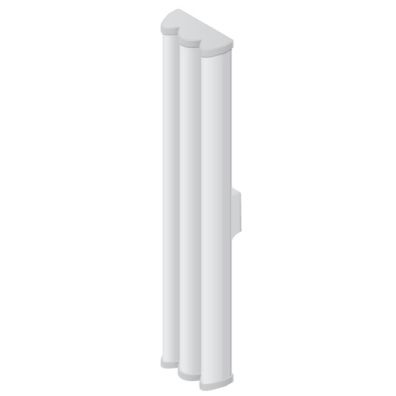

Ubiquiti | AirMAX Antenna | AM-5G19-120 | High Gain 4.9-5.9GHz AirMax BaseStation Sector Antenna 19dBi, 120° with Rocket Kit

Introducing the Ubiquiti Airmax Antenna AM-5G19-120, a state-of-the-art high-gain 4.9-5.9 GHz AirMax BaseStation Sector Antenna with a formidable 19 dBi signal strength and a wide 120-degree coverage. This comprehensive kit includes the Rocket Kit, ensuring a powerful combination for extending your network reach. With dimensions of 700 x 135 x 73 mm and a weight of 5.9kg, this antenna boasts a robust and compact design, making it ideal for a variety of deployment scenarios.

Operating in the frequency range of 5.15 - 5.85GHz, the AM-5G19-120 delivers an impressive gain of 18.6 - 19.1 dBi, providing reliable and high-performance connectivity for your network. The dual-linear polarization, with a horizontal and vertical beamwidth of 123°, ensures efficient signal propagation in both directions, while the electrical beamwidth of 4° and electrical downtilt of 2° enhance precision in signal directionality. With a maximum VSWR of 1.5:1 and exceptional cross-pol isolation of 28dB minimum, this antenna meets the rigorous ETSI Specification EN 302 326 DN2.

Built to withstand the elements, the AM-5G19-120 has an impressive wind survivability of 200 km/h and a wind loading of 137.9 N at 200 km/h, making it a reliable choice for challenging outdoor environments. Upgrade your network with this high-gain sectorized antenna, equipped with the Rocket Kit for a seamless and powerful wireless basestation solution. The Ubiquiti Airmax Antenna AM-5G19-120 is the key to expanding your network coverage with confidence, ensuring top-tier performance and reliability.

• Dual-Linear Polarisation
• Universal Pole Mount
• RocketM Bracket
• Weatherproof RF Jumpers

• Dimensions: 700 x 135 x 73 mm
• Weight: 5.9 kg
• Frequency Range: 5.15 - 5.85 GHz
• Gain: 18.6 - 19.1 dBi
• HPOL Beamwidth: 123° (6 dB)
• VPOL Beamwidth: 123° (6 dB)
• Electrical Beamwidth: 4°
• Electrical Downtilt: 2°
• Max. VSWR: 1.5:1
• Wind Survivability: 200 km/h
• Wind Loading: 137.9 N @ 200 km/h
• Polarization: Dual-Linear
• Cross-pol Isolation: 28 dB Min.
• ETSI Specification: EN 302 326 DN2
• Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included

_{* Dimensions and weight exclude pole mount and Rocket}

1-year limited warranty
