Ubiquiti | Airmax Antenna | LTU-LR | Ubiquiti LTU 5 GHz Long-Range Client Radio, PtMP 5GHz Radio, Range up to 30km, Functions in PtMP Environment w/ LTU-Rocket as Base Station

Designed for long-range applications, the LTU LR is a 5 GHz subscriber station that functions as a CPE (Customer Premises Equipment) in a Point-to-MultiPoint (PtMP) environment with the LTU Rocket® as the basestation.

Based on Ubiquiti’s LTU technology, the LTU LR is not impeded by the limitations of standard 802.11 Wi-Fi technology. Its custom LTU silicon and radio architecture provide up to 600+ Mbps¹ of real TCP/IP throughput and modulation rates of up to 4096QAM².

The LTU LR supports both bridged and built-in hardware NAT router modes to suit your specific deployment.

The LTU LR can use different frequencies for TX and RX to avoid interference.

The LTU Pro is designed for quick yet reliable mounting on a pole. It features a built‑in mechanical tilt; the mounting bracket allows convenient adjustments to the elevation with a range of ± 15°.

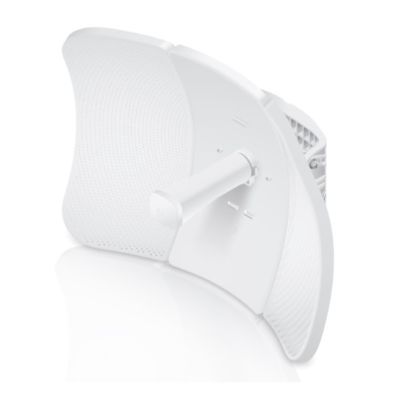

The LTU LR features a large reflector size and easy elevation adjustment (azimuth is adjusted by rotation around the pole).

Ubiquiti’s InnerFeed technology integrates the radio into the feedhorn of a 26 dBi antenna, so there is no need for a cable. This improves performance because it eliminates cable losses.

¹ 1+ Gbps with future firmware upgrade.

² Available with future firmware upgrade.

• PtMP CPE
• 1024 QAM
• 10/20/30/40/50 MHz channel bandwidth
• Central configuration management from AP side
• Frequency split
• Auto power adjustments
• Router mode support
• Range up to 30km

Functions in a PtMP environment with the LTU-Rocket as the basestation

• Dimensions: 512.5 x 385.75 x 258.3 mm
• Weight: 1.360 kg
• Weight with Mount: 1.735 kg
• Networking Interface: (1) 10/100/1000 Ethernet Port
• Enclosure: Outdoor UV Stabilized Plastic
• Max Power Consumption: 8.5W
• Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
• Power Method: 24V Passive PoE (Pairs 4, 5+; 7, 8-)
• Voltage Range: 22 - 26V
• Max. Conducted TX Power: 22 dBm (per Chain)
• Gain: 26 dBi
• Mounting: Pole-Mount (Kit Included)
• Wind Loading: 550 N @ 200 km/h (123.6 lbf @ 125 mph)
• Wind Survivability: 200 km/h (125 mph)
• ESD/EMP Protection: ± 24kV Contact/Air
• Operating Temperature: -40 to 60° C
• Operating Humidity: 5 to 95% Noncondensing
• Certifications: CE, FCC, IC

1-year limited warranty
