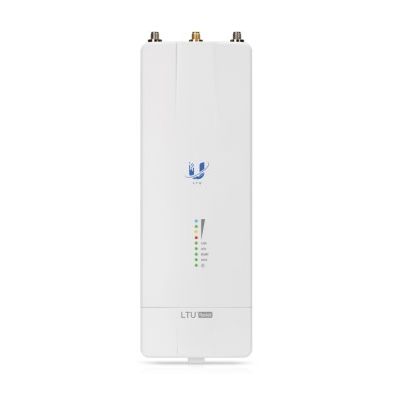

Ubiquiti introduces the LTU Rocket®, the first Point-to-Multi-Point (PtMP) BaseStation radio in our LTU™ product family. Operating in the 5 GHz frequency band, the LTU Rocket is a spectrally efficient, noise-resilient PtMP AP specifically designed for wireless ISPs (WISPs).
Superior Performance
Based on Ubiquiti’s LTU technology, the LTU LR is not impeded by the limitations of standard 802.11 Wi-Fi technology. Its custom LTU silicon and radio architecture provide up to 600+ Mbps1 of real TCP/IP throughput and modulation rates of up to 4096QAM2.
Seamless Compatibility
The LTU Rocket is designed to be paired with a variety of Ubiquiti antennas to suit the needs of each installation. The radio includes a mounting bracket that allows it to be used with a 5 GHz airMAX® Sector antenna or airMAX Omni antenna for a complete 5 GHz PtMP BaseStation. You can even pair three LTU Rocket radios with the airPrism® 5 GHz 3x30° HD Sector Antenna for co-location deployments.
The LTU Rocket also works with any CPE device in the LTU family, such as the LTU-Pro.
FEATURES
- 600+ Mbps PtMP performance1
- Up to 125 client connections per AP
- 2+ Million pps
- Proprietary RF filtering
1 1+ Gbps with future firmware upgrade.
SPECIFICATIONS
- Dimensions: 244 x 82 x 48 mm
- Weight: 0.468 kg
- Enclosure: Diecast Aluminum and Polycarbonate
- RF Connectors: (2) RP-SMA Weatherproof (CH0, CH1), (1) SMA Weatherproof (GPS)
- GPS Antenna: External Magnetic Base
- Power Supply: 24V, 1A Gigabit PoE Adapter (Included)
- Power Method: Proprietary 4-Pair Passive PoE Pins 1, 2; 4, 5+ and Pins 3, 6; 7, 8
- Max Power Consumption: 25W
- Voltage Range: +18 to +54VDC1
- Networking Interface: (1) 10/100/1000 Ethernet Port
- Mounting: Integrated Pole Mount (Included), Rocket Mount Compatible, GPS Pole Mount (Included)
- Operating Temperature: -40 to 55° C
- Weatherproofing: IP672
- Certifications: CE, FCC, IC
WARRANTY
1-year limited warranty
Specifications
SKU | UB.LTU.ROCKET |
---|---|
Brand | Ubiquiti |
Manufacturer Part# | LTU-Rocket-AU |
GTIN | 817882029490 |
Form Factor | Pole Mount |
Colour | White |
Warranty | 1 Year |
